Availability:
Description

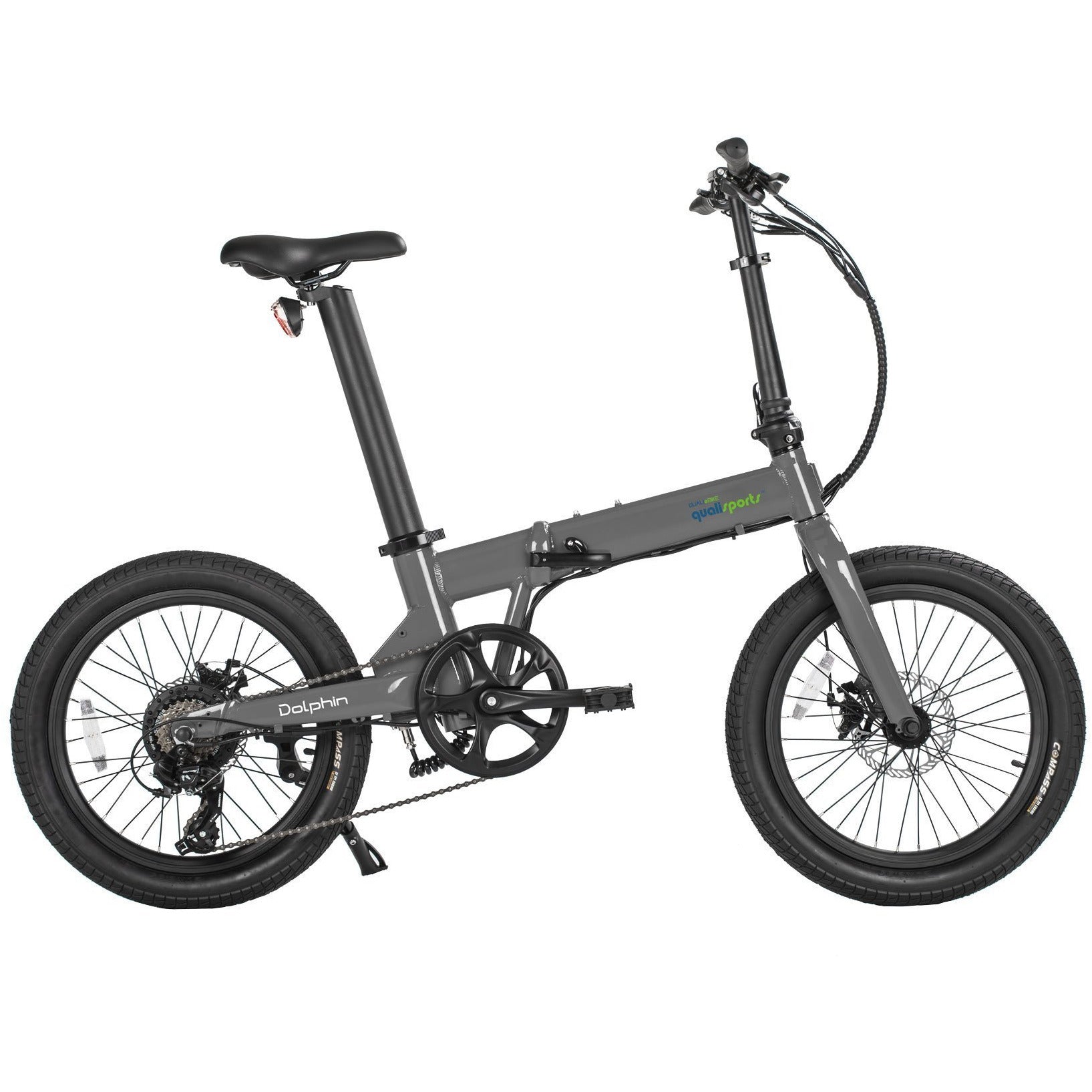

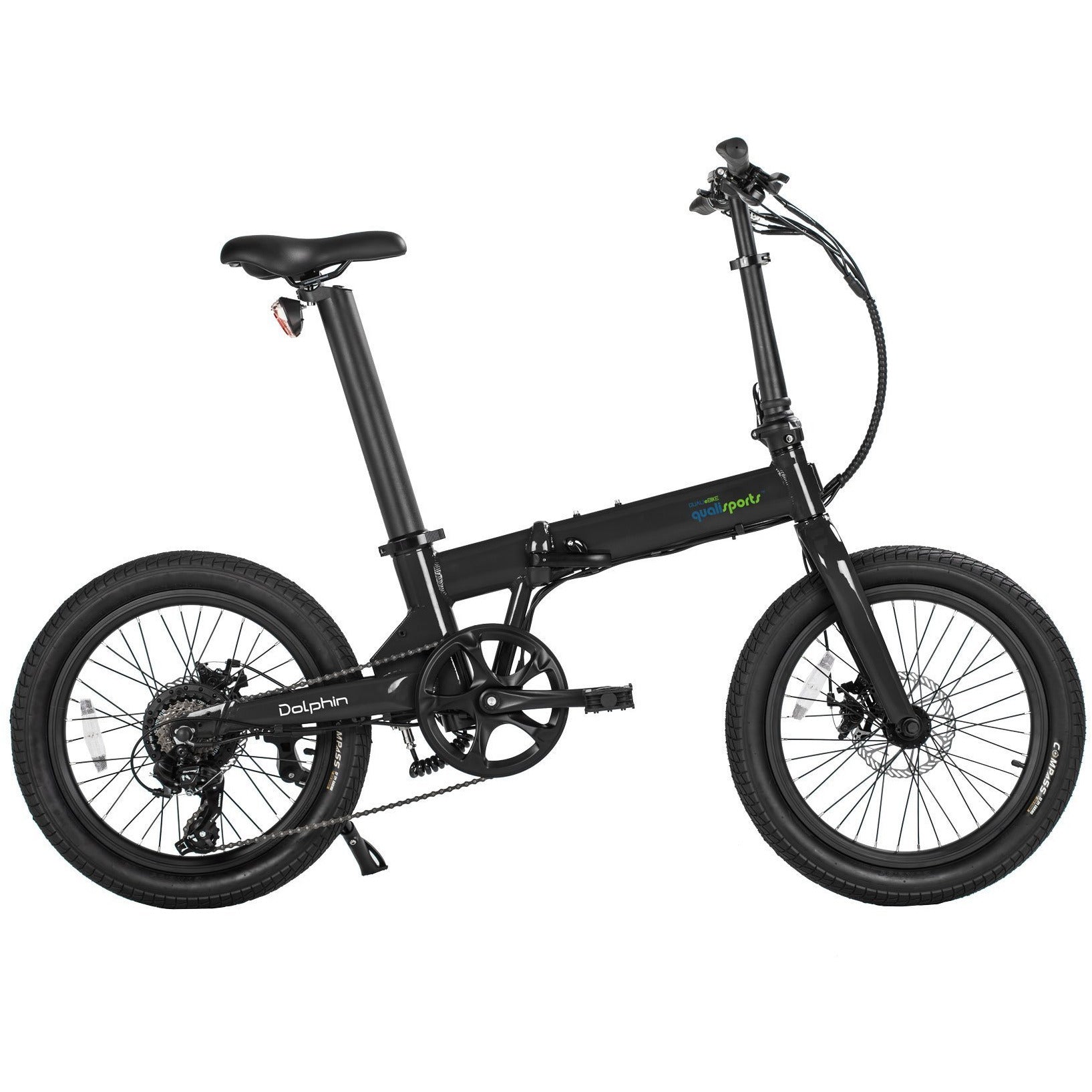

The Dolphin is an affordable and sleek folding bike that hides its electric system in the frame and seat post, MXUS hub-drive, 36v 14ah battery, 7 speed Shimano cassette, thicker tires, and mechanical brakes with inhibitors.

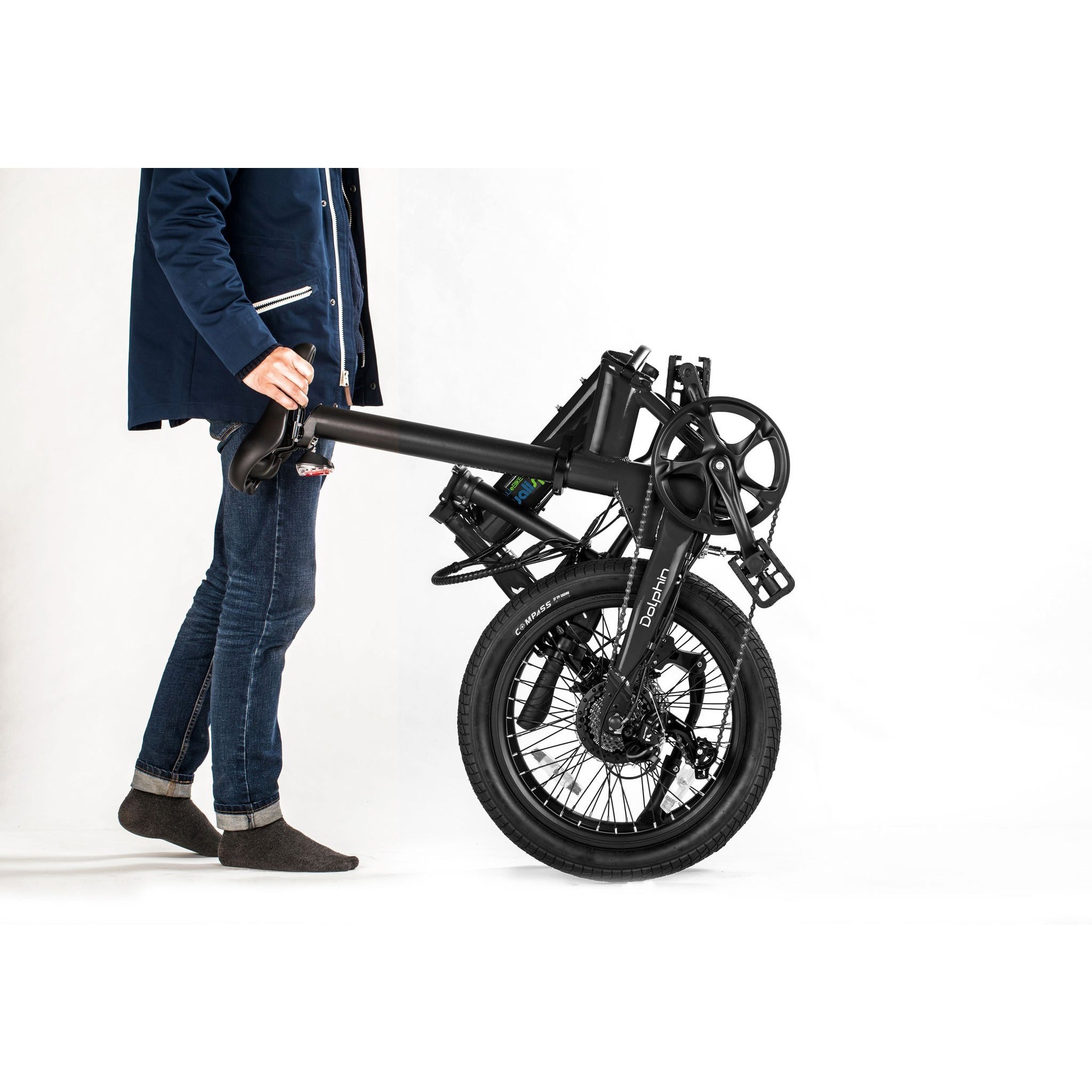

It folds well, so you can walk it when folded or even slide the seat post down through the frame to use it similar to a chair, allowing you to sit on the saddle of the bike while it is folded.
FREE WITH PURCHASE:
Dolphin comes fully outfitted with fenders, head light, rear light, bell, tool bag, thumb throttle, and kick stand.
Technical Specs
Total Weight: 47.7 lbs (21.63 kg)
Battery Weight: 7.5 lbs (3.4 kg) (8.1lbs with Saddle)
Frame: 6061 Aluminum Alloy; 11 in (27.94 cm)
Measurements: Unfolded: 11" Seat Tube, 22.5" Reach, 21.5" Standover Height, 29" Minimum Saddle Height, 23.5" Width, 63" Length; Folded: 33" x 14.5" x 28.5"
Frame Type: Mid-Step, Folding
Speed: Variable
Attachment Points: Rear Rack Bosses, Fender Bosses, Bottle Cage Bosses
Gears: 7 Speed 1x7 Shimano Tourney Derailleur, MF-TZ500-7 14-28 Tooth Cassette
Shifter: Shimano Triggers on Right (One-Way High Lever, 3-Shift Low Lever)
Cranks: Prowheel Forged Alloy, 170mm Length, 52 Tooth Chainring with Plastic Guard
Pedals: Plastic Platform, Folding
Stem: Custom Aluminum Alloy, Folding, Telescoping Height, 290mm Base Height, 170mm Extension, Quick Release Clamp, 25.4mm Clamp Diameter Handlebar: Promax, Flat, Aluminum Alloy, 590mm Length
Brakes: Wuxing Mechanical Disc Brakes with JAK 160mm Rotors and Calipers, Four Finger Levers with Motor Inhibitors
Grips: Velo, Rubber, Ergonomic, Non-Locking
Saddle: KNUS, Active
Seat Post: Length: 620 mm; Diameter: 56mm
Rims: Aluminum Alloy, Double Wall, Machined Sidewalls, 32mm Outer Width, 36 Hole
Spokes: Stainless Steel, 13 Gauge, Black with Silver Nipples Wheel Size: 20 in (50.8cm)
Tires: 40 PSI, 2.8 BAR, 27 TPI Casing
Accessories: 5 Star Integrated Headlight, Independent Rear Light (2 AA Batteries), Flick Bell, Steel Fenders, Rear Mount Adjustable Kickstand (40mm Mounting Provisions), Bike Cover Bag Other: Non-Locking Seat-Post Internal Battery Pack, 1.3lb 2 Amp Charger, 15 Amp Sine Wave Controller, 220lb Max Weight
Warranty
Qualisports Bike frames and forks are warranted by manufacturer to be free from defects in materials and workmanship.
This includes a 5 years warranty on Frame and Fork.
Battery warranty: All Qualisports e-bike batteries come with a 2 year warranty (Battery cycle lifetime is between 600 - 800 cycles depending on the environment conditions) Qualisports will replace the battery if it fails within two years (as long as it was not damaged by personal neglect).
Consumables such as tires, tubes, saddles, grips, brake cables and chains are not covered.
All other components and add-ons such as racks will have a one year warranty (Carry bags have no warranty). Please do note the limit of racks is 25kg (55lbs)
PLEASE CHARGE YOUR BATTERY EVERY MONTH - IF NOT IT VOIDS THE WARRANTY TERMS. EACH BATTERY WILL BE INSPECTED
Shipping & Returns
Ships free from Los Angeles within 24 hours of purchase
Returns
- Returns must be made within 14 days of receiving the bike
- To be eligible for a return, the bike must be unused, free from dirt, dust, or any fragrances, and in the same packaging and condition in which it was received
- Box must be sealed and unopened
- A $175 shipping fee and 25% restocking fee will be deducted from the refund
